1Zh24B

Check availability

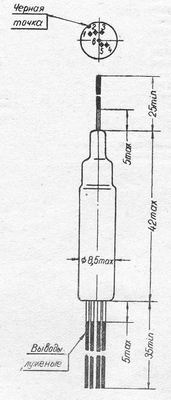

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name1Zh24B
Typepenthode
ApplicationHF voltage amplification
Cathode typeoxide, direct heating
Envelopeglass, miniature
Mass, g4
Socket typeflexible
Filament voltage, V1,2
Filament current, A0,011-0,015
Anode voltage, V60
Grid2 voltage, V45
Reverse grid current, uA0,1
Steepness, mA/V0,48
Microphonic noise, mV50
